LSP distributes and service HALT HASS Equipment from Qualmark Corp. Have a question on HALT HASS? Please drop us an email and we will get in touch with you.

Qualmark Corporation, headquartered in Denver, Colorado is the largest provider of Highly Accelerated Life-Testing (HALT) systems and Highly Accelerated Stress Screening (HASS) systems in the world. In addition to working with the best reliability and test laboratories throughout the world, Qualmark provides HALT and or HASS systems and services to the world’s leading manufacturers in virtually every industry, helping its customers improve the reliability of their products, deliver products to market faster and reduce total product lifetime costs. The Company has installed over 1,000 testing systems in 35 countries and operates or partners with twenty HALT and HASS testing facilities worldwide.

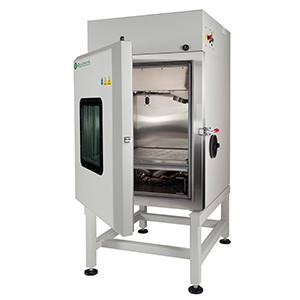

Typhoon 1.5

Temperature range: -100°C to +200°C
Vibration Range: 5 – 70 gRMS (10 hz to 500 hz) typical
Table size: 18″ x 18″ (457mm x 457mm)
Table payload: 80 lbs (36 kg)
Internal dimensions: W 27″ x D 27″ x H 19.5″ (686mm x 686mm x 496mm)

Typhoon 2.0

Temperature range: -100°C to +200°C
Vibration Range: 5 – 70 gRMS (10 hz to 500 hz) typical
Table size: 24″ x 24″ (457mm x 457mm)
Table payload: 100 lbs (45 kg)
Internal dimensions: W 27″ x D 27″ x H 19.5″ (686mm x 686mm x 496mm)

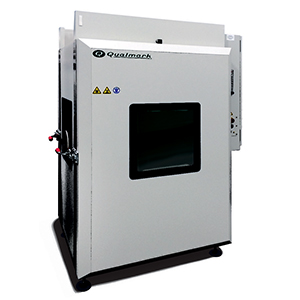

Typhoon 2.5 Plus

Temperature range: -100°C to +200°C
Vibration Range: 5 – 75 gRMS (10 hz to 500 hz) typical
Table size: 30″ x 30″ (762 mm x 762 mm)
Table payload: 320 lbs (145 kg)
Internal dimensions: W 35” x D 35’ x H 35” (889 mm x 889 mm x 889 mm)

Typhoon 2.5 Inferno

Temperature range: -100°C to +250°C
Vibration Range: 5 – 75 gRMS (10 hz to 500 hz) typical
Table size: 30” x 30” (762 mm x 762 mm)
Table payload: 320 lbs (145 kg)
Internal dimensions: W 35” x D 35” x H 35” (889 mm x 889 mm x 889 mm)

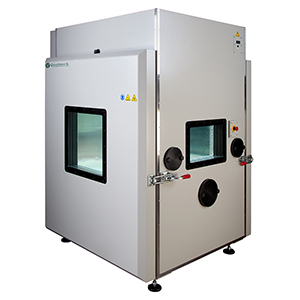

Typhoon 3.0

Temperature range: -100°C to +200°C
Vibration Range: 5 – 70 gRMS (10 hz to 500 hz) typical
Table size: 36″ x 36″ (914 mm x 914 mm)
Table payload: 450 lbs (204 kg)
Internal dimensions: W 44″ x D 45″ x H 35″ (1118 mm x 1143 mm x 889 mm)

Typhoon 4.0

Temperature range: -100°C to +200°C
Vibration Range: 5 – 75 gRMS (10 hz to 500 hz) typical
Table size: 48″ x 48″ (1220 mm x 1220 mm)
Table payload: 600 lbs (272 kg)
Internal dimensions: W 53.8″ x D 54″ x H 53.6″ (1366 mm x 1372 mm x 1362 mm)

Typhoon Inferno

Temperature range: -100°C to +250°C
Vibration Range: 5 – 75 gRMS (Bare Table)
Table size: 48” x 48” (1220 mm x 1220 mm)
Table payload: 600 lbs (272 kg)
Internal dimensions: W 53.8” x D 54” x H 53.6” (1366 mm x 1372 mm x 1362 mm)

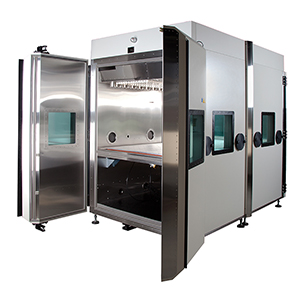

Typhoon 8.0

Temperature range: -100°C to +200°C
Vibration Range: 5 – 75 gRMS (10 hz to 500 hz) typical
Table size: 48″ x 100″ (1220 mm x 2540 mm)
Table payload: 1200 lbs (544 kg)
Internal dimensions: W 108.7″ x D 54″ x H 54.1″ (2761 mm x 1372 mm x 1375 mm)

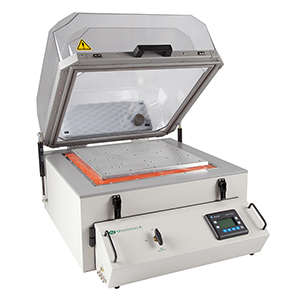

OVTT 18™ (Omni-axial Vibration Table Top)

Temperature range in a chamber: -50°C to +150°C (without cover or console)
Vibration Range: 5 – 40 gRMS (10 hz to 500 hz) Bare Table
Table size: 18″ x 18″ (457mm x 457mm)
Table payload: 50 lbs (23 kg)
Work space: W 20″ x D 20″ x H 9.5″ (508 mm x 508 mm x 242 mm)

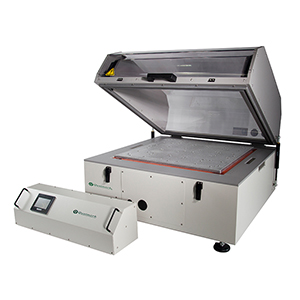

OVTT 24™ (Omni-axial Vibration Table Top)

Temperature range in a chamber: -50°C to +150°C (without cover and console)
Vibration Range: 5 – 60 gRMS typical
Table size: 24” x 24” (609 mm x 609 mm)
Table payload: 100 lbs (45 kg) Option for 200 lbs (90 kg)
Work space: W 24” x D 24” x H 9.5” (610 mm x 610 mm x 241 mm)
